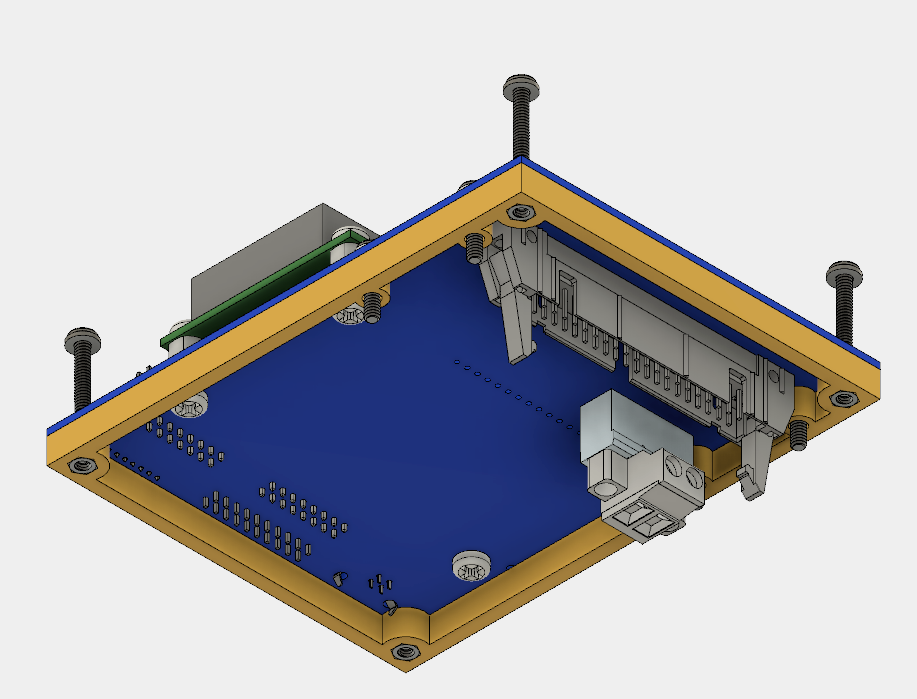

Bottom of PCB

A 3D-printable frame will be sandwiched between the PCB and the rear panel of the RL02. The whole thing mounts with four screws into the original drive bus connector mounting holes.
