Power Supply Mounting Adapter Frame in Fusion 360

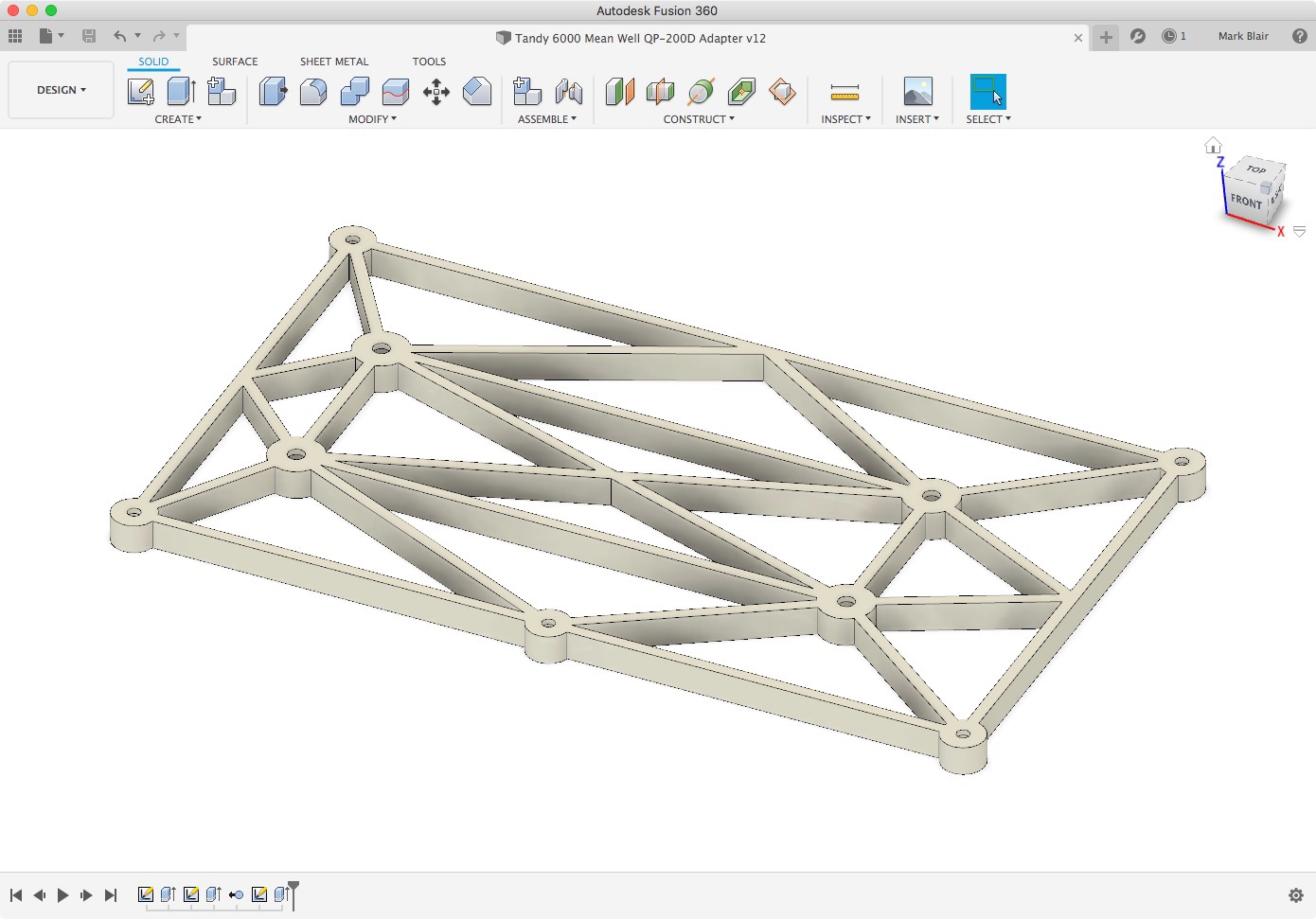

I designed an adapter to mount the Mean Well QP-200D in place of the original Astec power supply in Fusion 360. The inner four holes line up with the QP-200D’s bottom mounting screw holes, and the five holes around the perimeter sit over the standoffs that the Astec supply’s PCB originally screwed down.
