Card Cage

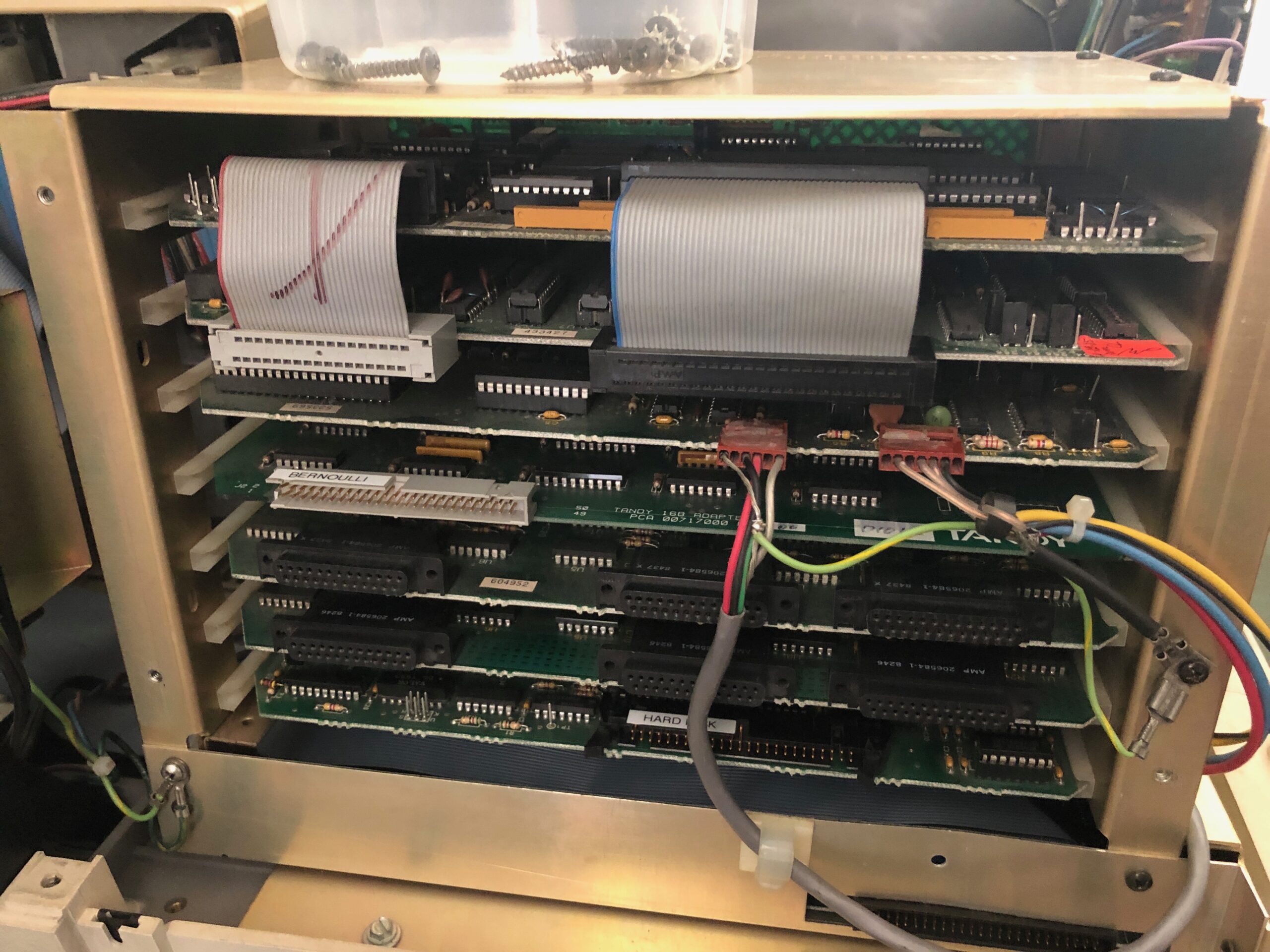

Here is the back of the card cage, with all of the original cards installed. I have the top cover removed here, but the card slots are accessible by removing a door on the back of the cabinet without removing the whole top cover.

This system has two of the 3-port serial cards, a hard drive interface, and a Bernoilli cartridge drive interface, in addition to the MC6800 board, its own RAM board, and the video/keyboard interface card.
