Jul 102016


I replaced the broken thermocouple in my MP Select Mini 3D Printer this weekend, and it’s back up and running again! Here’s how I did it.

I found an Amazon listing for 100k NTC beta=3950 thermistors. I ordered ten of them for $13.99 with Prime shipping. They are soldered to 1m long Teflon-insulated wires, just like the original thermistor, but they lack the mating connector for the controller board.

Ten Thermistors from Amazon

Ten Thermistors from Amazon

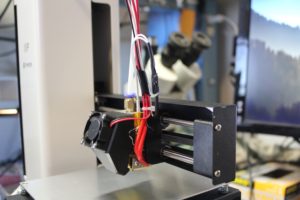

Here I’ve mounted one of the new thermistors. I’m routing the wiring differently to reduce mechanical stress on the thermistor leads, and to make the thermistor easier to replace if it fails.

New Thermistor Mounted

New Thermistor Mounted

I installed a 2-pin female connector on the end of the original thermistor wires, cut the new thermistor wires shorter, soldered male pins onto the new thermistor wires, and made the connection with a big loop to decouple the thermistor leads from wire flexing that can occur with X axis motion.

Thermistor Connection

Thermistor Connection

I found that the individual wires and the Bowden tube all wanted to move with respect to each other during X axis motion. I removed most of the spiral loom to let them move more freely.

Spiral Loom Removed

Spiral Loom Removed

With the new thermistor installed, the temperature control loop is once again closed!

Temperature Loop Closed!

Temperature Loop Closed!

With a thermocouple crammed down into the extruder, I find a 10 degree C error in the temperature. I never performed this measurement with the original thermistor, so I don’t know if it also produced the same error.

Temperature Error

Temperature Error
